The New Ripmo AF

The new Ripmo AF (Aluminum Frame) brings the award-winning performance of the carbon Ripmo to a wider, rowdier audience. It's everything we love from the carbon Ripmo, plus a few tweaks. Best of all, complete bikes start at only $4034.99

Build Your Ripmo AF

FACTS:

  • 29" Wheels
  • 160mm front travel
  • 147mm dw-link rear travel
  • 2.6" tire clearance
  • Aluminum front and rear triangle
  • Available in four sizes S-XL, fits riders between 5' and 6'6
  • Frame weight of 8.25lbs for a medium with a DVO topaz shock

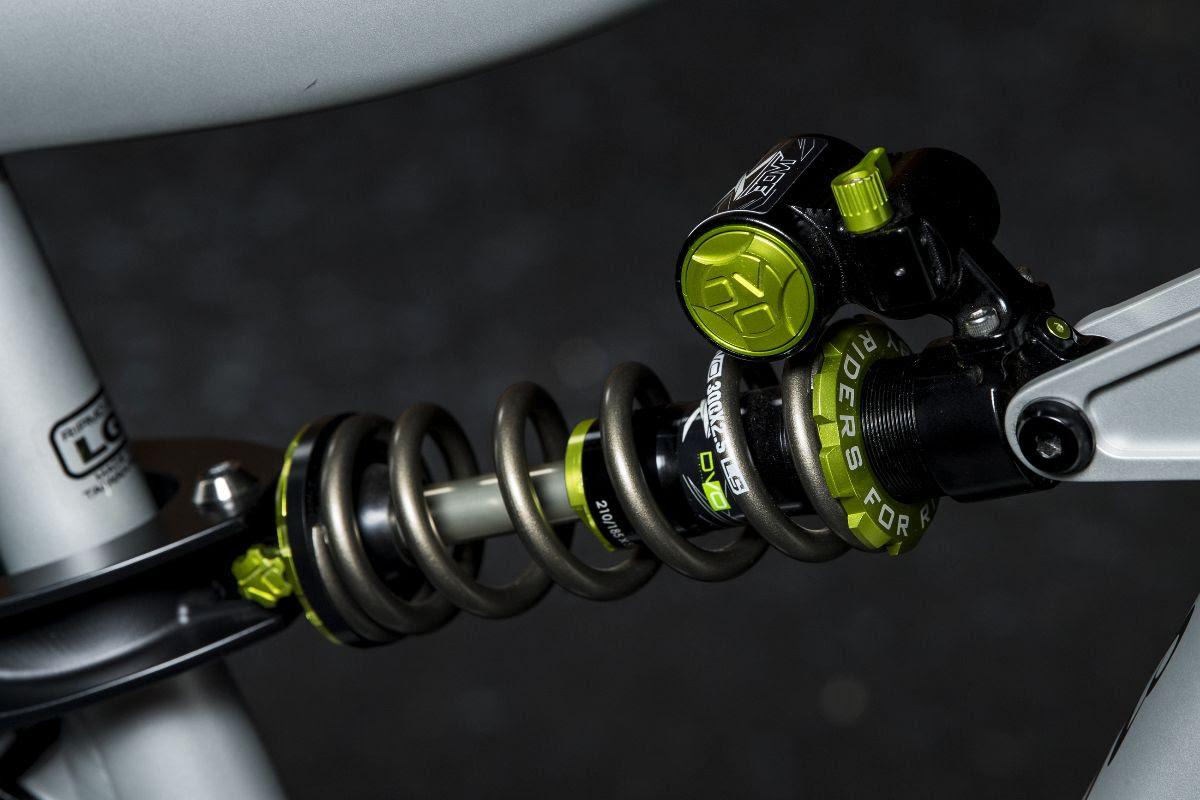

  • Available with DVO JADE X coil shock

DETAILS

  • Progressive suspension leverage ratio for compatibility with select coil shocks
  • Slack 64.9 head angle
  • 44mm fork offset
  • Steep 76 degree seat tube angle
  • Threaded BB (73mm BSA)
  • ISCG 05 Compatible with removable adapter

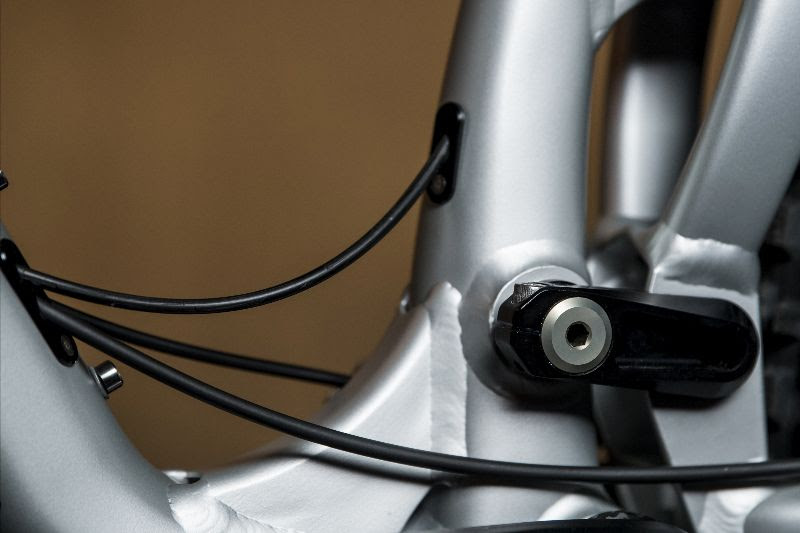

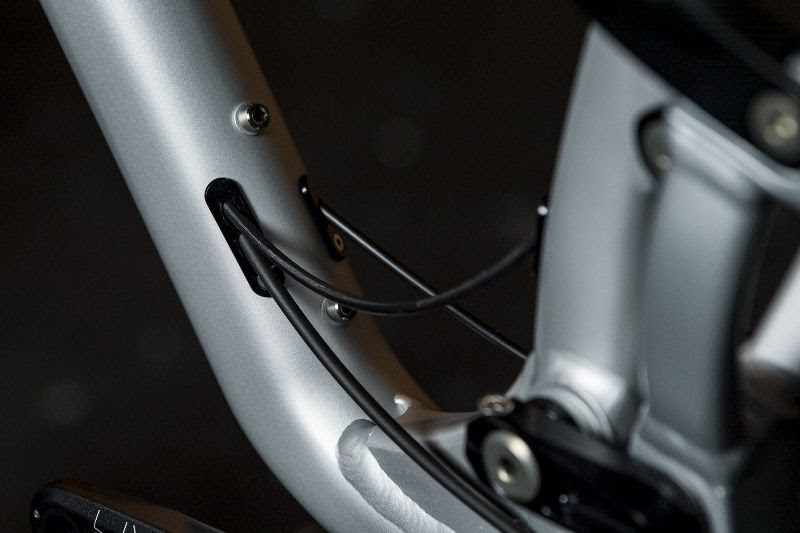

  • Port style internal cable routing
  • 22oz bottles fit inside front triangle
  • Size M-XL compatible with 170mm+ droppers, 125-150mm for smalls
  • Molded rubber swing arm protectors
  • IGUS bushings in lower link, bearings in upper link
  • Metric 210x55 shock
  • 203mm max rotor size
  • 1x specific design
  • Boost hub spacing
  • Tapered headtube and steerer: ZS44 upper, ZS56 lower

PRICING

  • Complete builds starting at $4034.99
  • Frame only w/ inline shock start at $2,411 with the Topaz, $2,545 with the Jade X upgrade

SICK AF BUILD KITS

All three build kits come with DVO's top of the line suspension components. With 1x12 speed drivetrains, four-piston brakes, reliable dropper posts, and real tires, we didn't cut any corners. It's the kind of build you can rally right out of the box. The Ripmo AF is backed by Ibis seven year warranty

Build Your Ripmo AF
