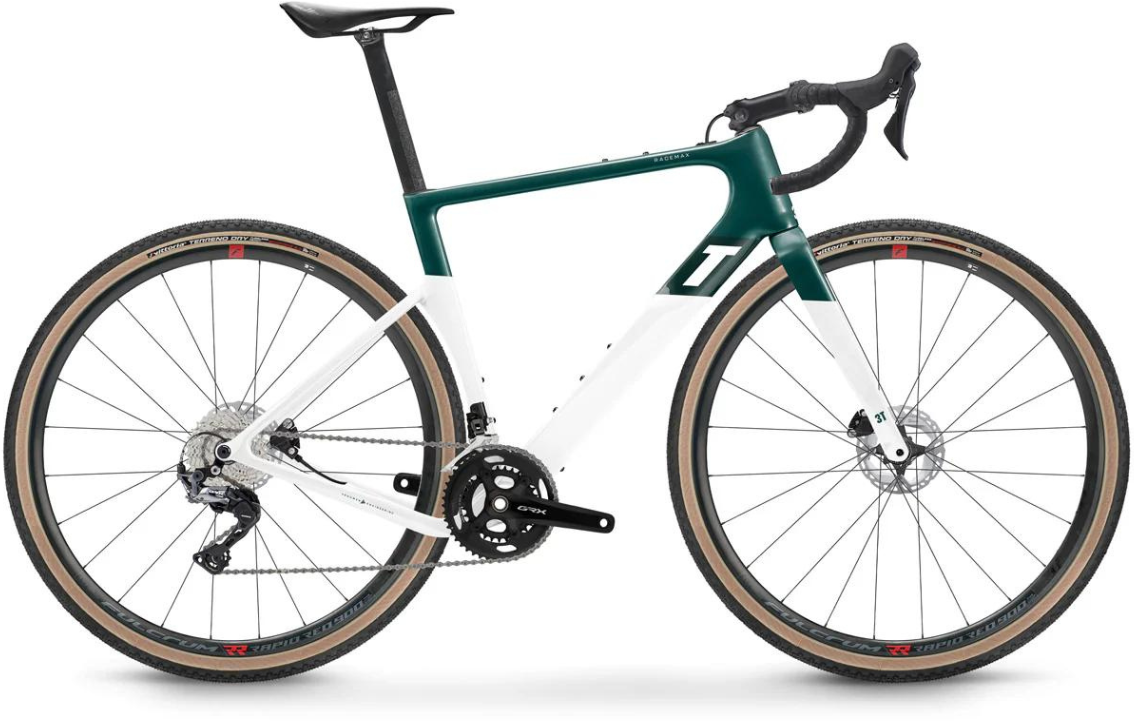

3T Racemax GRX 2x12 700c

3T Racemax GRX 2x12 700c
  • Color: Emerald / White
$4,899.00 - $5,999.00
$5,999.00
Color: Emerald / White
Size: Select size
Please select options Unavailable

Details

THE RACEMAX IN A NUTSHELL
Whether riding road or gravel, we love speed. So everything on the RaceMax frame is engineered for that. The end result is the first gravel bike that looks like a road bike, rides like a road bike, and rips through gravel.

Best of all, the very same RaceMax frame can be built up with a focus on pure speed with 35-46mm width-as-measured tires in 700c but can also be turned into an unstoppable machine with very wide tires up to 61mm width-as-measured in 650b. That’s RaceMax.

Shimano GRX 2x12 Speed Build
Closer-spaced Shimano GRX 2x gearing at a small weight, aero & simplicity cost.


GEOMETRIES

SizeXXS5154565861
Rider Height (cm) 145-160 157-171 168-180 176-186 183-195 192 & up
Rider Height* (inches) 4'9"-5'3" 5'2"-5'7" 5'6"-5'11" 5'9"-6'1" 6'0"-6'5" 6'3 & up
Stack 522 544 566 586 606 634
Reach 353 364 374 382 390 401
"Road" Headtube 125 147 161 180 201 230
Headtube angle 68.7 69.2 70.7 71.7 72.2 72.2
Fork axle-crown 375 375 375 375 375 375
Front center 597 612 607 612 622 642
Rear center 418 418 418 418 418 418
BB drop 77 77 77 75 73 73
Toptube length 501 518 536 549 563 582
Seattube length 436 463 490 518 545 572
Seattube angle 74 74 74 74 74 74

* Rider heights are approximations. For more accuracy, compare stack/reach with your current bike or visit your 3T retailer.

** RaceMax FORK length is equal to a standard road bike, so this HEADTUBE length can be compared to road bikes. To compare to gravel bikes with standard gravel forks, deduct 25mm from these “road" headtube lengths for a proper comparison.

Specs

Frame Unidirectional pre-preg carbon, High-modulus/high-strength performance blend layup
Fork Fango RaceMax w/ compact crown
Headset 3T MinMax IS42/28.6 + IS 47/38
Thru-axle 100x12 front - 142x12 rear
Handlebar 3T Superergo Pro ( 51: 40cm - 5&56: 42cm - 58: 44cm)
Stem APTO STEALTH (51:80mm - 54: 90mm - 56:100mm - 58:110mm)
Front Derailleur Shimano GRX FD-RX 810 11s
Rear Derailleur Shimano GRX RD-RX 810 11s
Shift / Brake Levers Shimano GRX ST-RX 600 11s
Brakes Shimano BR-RX400+ 160mm RT70 rotor
Crankset Shimano GRX FC-RX 600 46/30 11s (51: 170mm, 54&56: 172.5, 58: 175mm)
Cassette 11 speed Shimano CS - HG700 11-34
Wheelset Fulcrum Rapid Red 900, 700c
Tires Pirelli Cinturato Gravel M 700x40
Seatpost 3T RaceMax seatpost for Ritchey clamp
Saddle Selle Italia Model X Superflow
*Additional Info Specifications are subject to change without notice

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Emerald / White / 56cm 9352EMDL33W RAC327317236
Emerald / White / 58cm 9352EMDM33W RAC327018388
