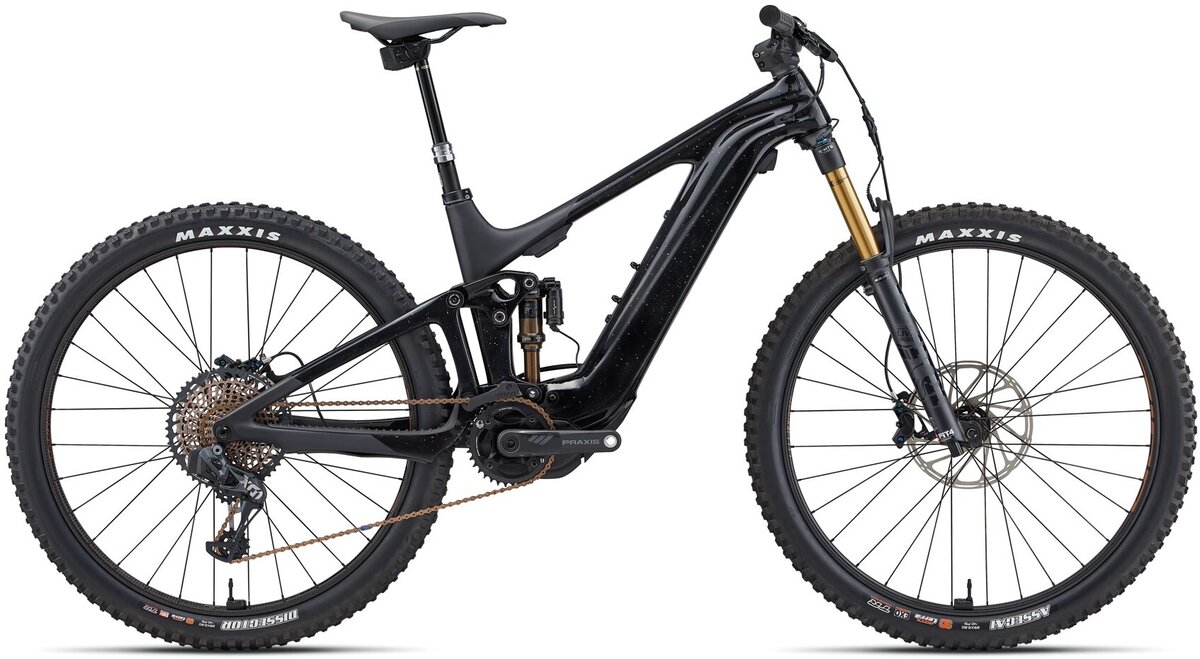

Impossible climbs are now possible. Remote and challenging singletrack trails are within your reach. The allnew Trance X Advanced E+ LTD extends your capabilities, empowering you to conquer big mountain terrain and
everyday rides with absolute confidence and flat-out fun.
This limited-edition E-MTB combines Giant’s most advanced motor and battery systems with race-proven mountain
technologies including Maestro rear suspension and adjustable frame geometry. It was designed and developed in
partnership with E-MTB pros from the Giant Factory Off-Road Team including Australian E-bike national champion
This new SyncDrive Pro motor is the most advanced and powerful motor in the Giant E-bike lineup. With a hill-crushing
85Nm of torque and a 400 percent support ratio, it delivers a dynamic ride experience on all types of terrain. Whether
you’re spinning up long, sustained climbs or applying quick bursts of power at low speeds in technical terrain, you get
instant engagement that feels smooth and natural.
The motor, co-developed with Yamaha, is optimized for the Trance X Advanced E+ LTD chassis and Maestro suspension.
Its Smart Assist technology uses six sensors to determine the precise amount of power needed for your riding style and
the terrain you are riding. It also has reduced noise levels and a narrow Q-factor for optimized pedaling performance.
The motor is powered by the all-new EnergyPak Smart 800 system, which features new battery cell technology that
caters to the specific needs of E-bike usage. At the core of this new battery system is a new 22700 cell type, which vastly
outperforms the standard 21700 and 18650 cell types found in most E-bikes. The system uses a total of 40 cells, the
same as most E-bike batteries, but these larger cells have greater discharge capacity. They also run cooler, which means
less stress on the system and a longer total lifecycle.
The all-new Contact SLR Trail Integrated handlebar/stem unit offers adjustability, compliance, light weight and a clean,
simple profile. Weighing just 225 grams, it has all the advantages of a one-piece bar and stem but with the adjustability
of a conventional setup. Riders can set it to their desired stem length (40mm, 45mm or 50mm) and rotate the bar to
achieve the angle they want.
A proprietary carbon fiber layup and slimmer profile near the center of the handlebar adds compliance. This helps
absorb shocks and vibrations, reducing arm pump and improving hand comfort on rugged terrain.
There are two control centers on the Trance X Advanced E+ LTD. The RideControl Go button, cleanly integrated into
the top tube of the frameset, allows riders to quickly and easily turn the power on and off and switch between power
modes. Colored LED lights indicate the battery level and support mode.
The second control unit, RideControl Ergo 3, is integrated with the handlebar grips. With three buttons, it can be
installed on either the left or right side and can be configured to the rider’s own personal preferences. You can also
connect and mount a second RideControl Ergo 3 unit on the opposite side of the bars. The minimalist design makes it
easy to personalize and adjust features such as walk-assist mode and lights.
