Trek Domane SL Gen 4 Frameset - 2025

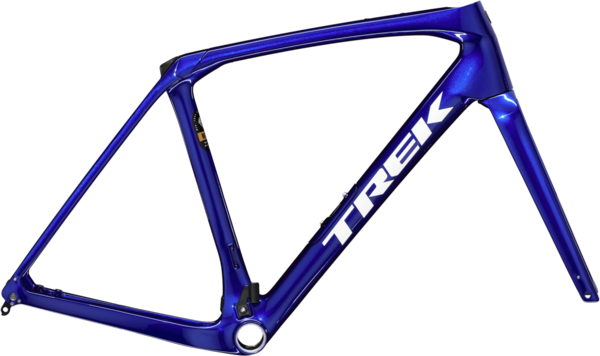

Trek Domane SL Gen 4 Frameset
  • Color: Hex Blue
  • Color: Gravel
$1,795.00 - $3,199.99
$3,199.99
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
This item is only available for in-store pickup. ** You will be contacted as soon as your order is ready for pickup **

Details

The lightweight Domane SL Frameset is built for your longest rides and the roughest conditions. Crafted with 500 Series OCLV Carbon and road-smoothing rear IsoSpeed, Domane SL is meticulously built so that you can stay stronger longer. This carbon endurance road frame is designed for flat-mount disc brakes, has a built-in storage compartment, and includes a headset and a Domane SL carbon fork. It offers plenty of tire clearance so you can roll on up to 38mm tires for cushioning on rough roads and light gravel.

Geometry
Sizes:
Frame size number44cm47cm50cm52cm54cm56cm58cm60cm
Wheel size 700c 700c 700c 700c 700c 700c 700c 700c
A — Seat tube 39 42 45 47.5 50 52.5 54.8 56.7
B — Seat tube angle 74.6° 74.6° 74.6° 74.2° 73.7° 73.3° 73.0° 72.8°
C — Head tube length 9.5 11 13 14.5 16 17.5 19.5 22
D — Head angle 70.3° 71.0° 71.1° 71.3° 71.3° 71.9° 72.0° 72.1°
E — Effective top tube 50.1 50.9 51.9 53 54.2 55.4 56.7 57.9
G — Bottom bracket drop 8 8 8 8 8 7.8 7.8 7.5
H — Chainstay length 42 42 42 42 42 42 42.5 42.5
I — Offset 5.3 5.3 5.3 5.3 5.3 4.8 4.8 4.8
J — Trail 6.6 6.1 6 5.9 5.9 6.1 6 5.9
K — Wheelbase 98.3 98.6 99.6 100.3 101 100.8 102.2 103.2
L — Standover 65.7 68.6 71.6 73.5 75.4 77.6 79.6 81.7
M — Frame reach 36 36.4 36.8 37.1 37.4 37.7 38 38.3
N — Frame stack 51 52.7 54.6 56.1 57.5 59.1 61.1 63.2
Saddle rail height min (w/short mast) 53.5 55.5 58.5 61.5 64 67 69 71
Saddle rail height max (w/short mast) 60 62 65 68 70.5 73.5 75.5 77.5
Saddle rail height min (w/tall mast) 56.5 58.5 61.5 64.5 67 70 72 74
Saddle rail height max (w/tall mast) 63 65 68 71 73.5 76.5 78.5 80.5
Sizes:
SizeRider HeightInseam
44 150 - 153 cm
4'11" - 5'0"		 71 - 73 cm
28" - 29"
47 152 - 158 cm
5'0" - 5'2"		 71 - 75 cm
28" - 30"
50 158 - 163 cm
5'2" - 5'4"		 74 - 77 cm
29" - 30"
52 163 - 168 cm
5'4" - 5'6"		 76 - 79 cm
30" - 31"
54 168 - 174 cm
5'6" - 5'9"		 78 - 82 cm
31" - 32"
56 174 - 180 cm
5'9" - 5'11"		 81 - 85 cm
32" - 33"
58 180 - 185 cm
5'11" - 6'1"		 84 - 87 cm
33" - 34"
60 185 - 190 cm
6'1" - 6'3"		 86 - 90 cm
34" - 35"
62 190 - 195 cm
6'3" - 6'5"		 89 - 92 cm
35" - 36"

Specs

Frame 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Accessories & Extras Bontrager BITS Internal Frame Storage Bag

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Hex Blue / 44cm / 700c 197216143710 5331924 DOM271061944
Hex Blue / 47cm / 700c 197216143727 5331925 DOM277714304
Hex Blue / 50cm / 700c 197216143734 5331926 DOM27807134
Hex Blue / 52cm / 700c 197216143741 5331927 DOM279590304
Hex Blue / 54cm / 700c 197216143758 5331928 DOM275962254
Hex Blue / 56cm / 700c 197216143765 5331929 DOM278361314
Hex Blue / 58cm / 700c 197216143772 5331930 DOM273757754
Hex Blue / 60cm / 700c 197216143789 5331931 DOM27419604
Hex Blue / 62cm / 700c 197216143796 5331932 DOM272864804
Gravel / 44cm / 700c 197216143628 5331915 DOM263276194
Gravel / 47cm / 700c 197216143635 5331916 DOM268514244
Gravel / 50cm / 700c 197216143642 5331917 DOM26374484
Gravel / 52cm / 700c 197216143659 5331918 DOM267887604
Gravel / 54cm / 700c 197216143666 5331919 DOM267511404
Gravel / 56cm / 700c 197216143673 5331920 DOM26158814
Gravel / 58cm / 700c 197216143680 5331921 DOM263333454
Gravel / 60cm / 700c 197216143697 5331922 DOM265327584
Gravel / 62cm / 700c 197216143703 5331923 DOM269422534
