Faster up the climbs, longer loops, more singletrack fun on any given day. Give yourself the freedom to extend your trail-riding adventures with this powerful, smooth-riding 29er.
The SyncDrive Pro motor gives the new Trance X E+ Pro 29 a massive 80Nm of torque and 360 percent tunable support, all controlled by the new Giant E-bike App. This gives you the freedom to ride trails the way you want to. You can choose full power to ease your pedaling effort or tune it less aggressively to get more of a workout. Featuring 140mm of smooth Maestro suspension travel in the rear, 150mm up front, and progressive frame geometry that's designed for 29-inch wheels, this is a whole new way to tackle technical singletrack trails. The EnergyPak 625 battery is cleanly integrated into the downtube of the lightweight ALUXX SL frame. The new RideControl ONE with EVO display compatibility gives you navigation, health, and fitness tracking capabilities—everything you need for a great day on the trail.
Smooth, Powerful Support
- SyncDrive Pro motor delivers 80Nm of torque and tunable support ratios up to 360 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.
29er Confidence And Control
- Optimized Maestro suspension for 29-inch wheels with 140mm rear/150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.
Adjustable Frame Geometry

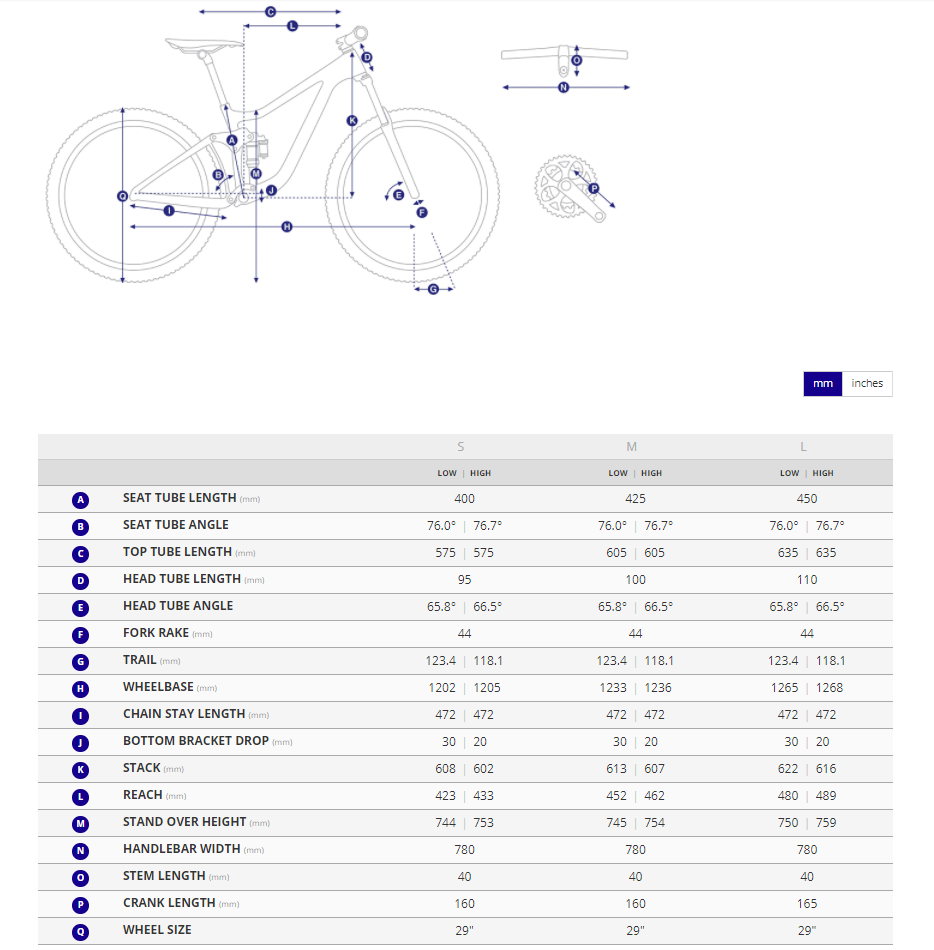

- Flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.8/76.0 head/seattube angle and 30mm BB drop) for faster, open terrain or high (66.5/76.7 head/seattube angle and 20mm drop) for slower, tighter singletrack.
|Motor||Giant SyncDrive Pro|
|Battery||Giant EnergyPak Smart 625, 36V Integrated Lithium-Ion|
|Display||Giant RideControl Ergo|
|Frame||ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 140mm Maestro Suspension System, 'Boost' 148x12QR, ISS, Giant EnergyPak Plus Range Extender Compatible|
|Fork||Fox 36 Float Performance Elite, 150mm travel, 44mm offset, FIT4, 3Pos-Adj. Damper, Boost 110x15QR, e-optimized|
|Rear Shock||Fox Float DPX2 Performance, EVOL Large Volume sleeve, 3-Pos Lever, 185x52.5mm Trunnion mount|
|Rims/Wheels||Giant e-TR1 29, Tubeless ready, 30mm inner width|
|Hubs||Giant e-TR1 [F] 110x15 [R] 148x12mm Thru-axle|
Front: Maxxis Assegai 29x2.6" foldable, Tubeless, EXO, 3c MaxxTerra
Rear: Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 120tpi 3C Compound
|Crankset||Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)|
|Chain||KMC e.12 Turbo, EcoProteq, e-bike optimized|
|Front Derailleur||MRP 1X custom "V3" co-molded TR chain guide|
|Rear Derailleur||Shimano Deore XTR, 12-Speed, Shadow+|
|Cassette/Rear Cogs||Shimano CS-M7100-12, 10-51T, 12-Speed|
|Shifters||Shimano Deore XT, 12-speed I-spec EV|
|Handlebars||Giant Contact 35 Trail, 35x780mm|
|Stem||Giant Contact SL 35|
|Brake Levers||Shimano Deore XT, BL-M8100 I-spec EV|
|Brakes||Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 203mm|
|Saddle||Giant Romero Trail|
|Seat Post||Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)|
|Accessories & Extras||Giant EnergyPak Smart 6A charger Tubeless kit (liquid, valves, levers, manual, tool), Inner tube supplied, Giant EnergyPak Plus range extender compatible|
* Subject to change without notice.
